Jetway NFS6Z-IH81 Mini-ITX embendded motherboard Intel Core i7,i5,i3 LGA1150 Haswell PCI slot,12 COM, 2 Full size PCIE: JNFS6Z-IH81

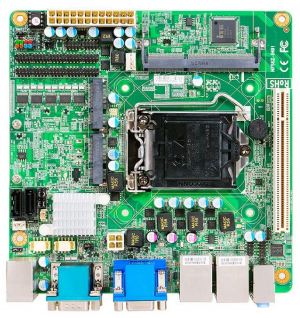

Images shown for reference only


Shipping Extra

ATACOM Part #: IMBM_JETA_DI_83

Manufacturer Part#:NFS6Z-IH81


   Price: $385.95


Product SKUs
Brand Jetway
Product Type Motherboard
Manufacturer Part Number NFS6Z-IH81
Chipset

H81 Express

Video

Intel HD Graphics in processor

Processor

Supports 4th Generation Intel Core i7, i5, i3 Processors, LGA1150 Socket, Haswell

Memory

2 * 204-pin SO-DIMM slot supporting DDR3/DDR3L-1600 up to 16GB total

Expansion Slots

1 * 32bit PCI Slot,

1 * Mini-PCI Express slot (full-size), SIM socket

Storage

2 * SATA3 6Gb/s ports,

1 * mSATA/Mini-PCIE Shared slot (Full-size)

Audio Realtek ALC662 HD Audio
Network 1 * intel i211-AT Gigabit LAN + 1 * Intel i217-LM Gigabit LAN
Other Features

Enhanced 10KV ESD Protection, AHCI, ACPI S3, CPU Smart FAN, Watchdog Timer 10-255 min/sec

Rear Panel I/O

4 * USB 3.0 Ports,

2 * USB 2.0 Ports,

2 * RJ-45 Ports, HDMI,

2 * VGA Line-out, Line-in, Microphone,

1 * Serial port (RS232/422/485),

1 * PS/2 combo port

Internal I/O (all headers 2.0mm pitch)

2 * USB Headers for 4 * USB 2.0 Ports

8-bit GPIO, AT/ATX Power switch mode jumper, Chassis intrusion Header

11 * Serial port headers (10*RS232, 1*RS232/422/485), TPM header, SIM Socket

24-pin ATX and 4-pi9n ATX_12V power connector

BIOS AMI 32MB DIP Flash ROM
Box Contents NFS6Z Motherboard, I/O Shield, DVD Driver Disk
Certification

CE, FCC, RoHS, ErP/EuP, REACH

Temperature

Operating Temperature 0~60 º C, Storage Temperature -20-85 º C

Form Factor

Mini-ITX Form Factor (170mm x 170mm)

Warranty

2 Years Limited Warranty



1. Industrial Motherboard, All Solid Capacitors, Enhanced 10KV ESD Protection, Planned Lifecycle Through Q4’2018

2. Supports Intel Core i7, i5, i3 LGA1150 Haswell Processors

3. Supports DDR3/DDR3L-1600 SO-DIMM up to 16GB Total

4. Supports up to 2 Displays, HDMI, 2 * VGA Ports

5. 2 * SATA3 6Gb/s Ports

6. 1 * Full-size mSATA/mini-PCIE Slot

7. 1 * Full-size mini-PCIE Slot, SIM Socket

8. 1 * 32bit PCI Slot

9. 2 * Intel Gigabit LAN, HD Audio

10. 12 * Serial Ports (1-EXT, 11-INT)

11. 4 * USB 3.0 Ports, 6 * USB 2.0 Ports, TPM Header

12. PS/2 Combo Port, 8-bit GPIO, Watchdog Timer

13. ATX Power Connector

14. Supports Windows 7, 8.1, 10, Linux

15. Mini-ITX Form Factor (170mm x 170mm)
